Connection "RJS"

The push-on joint restrained joint "RJS" with rubber gasket for DN 600 mm- DN 1000 mm are recommended for pipelines laying in unstable soils, mountainous, earthquake prone areas and swampy grounds. The pipes with this type of joint can be succesfully  used for trenchless pipelaying. The "RJS" system provides joint efficiency due to the bead on spigot end of pipe and anchors sliding into the socket opening when the joint assembled. The restrained push-on joint pipes are supplied complete with "TYTON" rubber gaskets and anchors which should be fixed with metal strip for moving of assembled pipeline string.




Assembling RJS



Anchors For "RJS" Joint

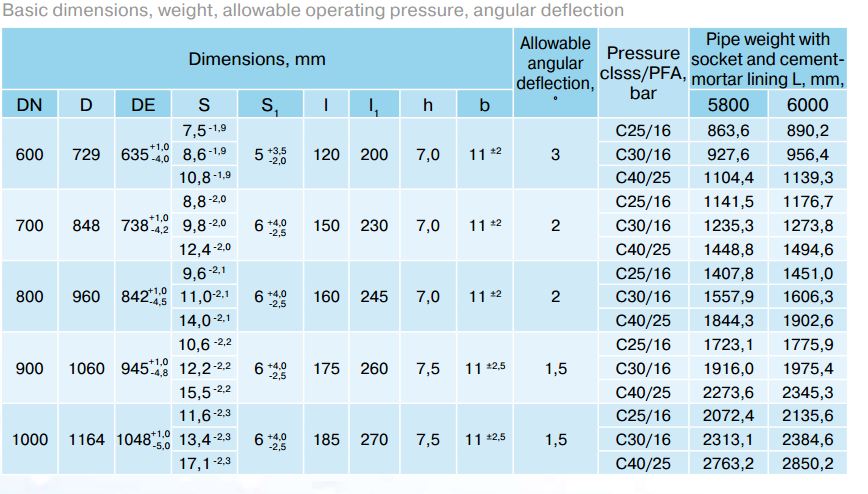

Basic dimensions, weight


DN,

мм

R,

мм

Quantity of stoppers.

pcs.

Weight of stoppers, kg
Weight of one sopper Weight of the set for one joint
600 317,5 10 1.8 18
700 369,0 10 2.0 20
800 421,0 10 2.1 21
900 472,5
13 2.2 28.6
1000 524,0 14 2.6 36.4



The Rubber Gasket For "TYTON" and "RJS Joints

Basic dimensions. Weight

Dimensions, mm Weight (for reference), kg
DN d1 d2 d3 h1 t1 t2 r
80 126 ±1,0 124 ±1,0 16 +0,5 10 +0,3 26 5 +0,4 3,5 0,13




-0,2
100 146 ±1,0 144 ±1,0 16 +0,5 10 +0,3 26 5 +0,4 3,5 0,21




-0,2
125 173 ±1,0 171 ±1,0 16 +0,5 10 +0,3 26 5 +0,4 3,5 0,29




-0,2
150 200 ±1,5 198 ±1,5 16 +0,5 10 +0,3 26 5 +0,4 3,5 0,36




-0,2
200 256 ±1,5 254 ±1,0 18 +0,5 11 +0,3 30 6 +0,4 4,0 0,50




-0,2
250 310 ±1,5 308 ±1,0 18 +0,5 11 +0,3 32 6 +0,4 4,0 0,72




-0,2
300 366 ±1,5 364 ±1,0 20 +0,5 12 +0,3 34 7 +0,4 4,5 0,94




-0,2
350 420 ±2,0 418 ±2,0 20 +0,5 12 +0,3 34 7 +0,4 4,5 1,25




-0,2
400 475 ±2,0 473 ±2,0 22 +0,5 13 +0,3 38 8 +0,5 5,0 1,54




-0,3
500 583 ±3,0 581 ±3,0 24 +0,5 14 +0,3 42 9 +0,5 5,5 2,45




-0,3
600 692 ±3,0 690 ±3,0 26 +0,5 15 +0,3 46 10 +0,5 6,0 3,34




-0,3
700 809 +5,0 803 ±3,5 33,5 +0,5 20 +0,3 55 16 +0,5 7 4,55
-2,5


-0,3
800 919 +5,0 913 ±3,5 35,5 +0,5 21 +0,3 60 16 +0,5 8 5,51
-2,5


-0,3
900 1026 +6,0 1020 ±4,0 37,5 +0,5 22 +0,3 65 18 +0,5 9 6,30
-2,0


-0,3
1000 1133 +7 1127 ±4,0 39,5 +0,5 23 +0,3 70 18 +0,5 9 7,04
-2,0


-0,3
