Connection "RJ"

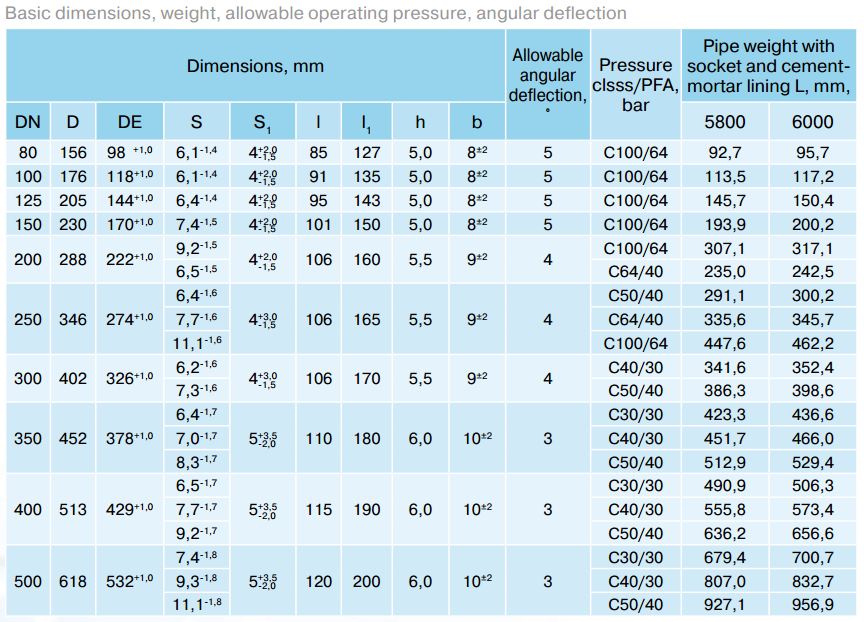

Because of the "RJ" joint the pipe doesn't get disconnected when laid in a rough terrain, at places with danger of sagging or in case of impact load. Circular bead at the pipe spigot and two anchors inserted into the recess of the socket after connection and fixed with a retaining wire prevent the pipes from disconnecting. It's especially important when pipelines are laid in unstable soil, mountainous areas and in vertical position. The "RJ" joint is recommended for pipelines laying by the trenchless methods. Areas of application are - cold water supply, heating systems, sewerage systems. Spigot and socket pipes with "RJ" joint are equipped with rubber gaskets and anchors.

Assembling RJ

Rubber Gaskets For "RJ" Joint

Basic dimensions, weight

Dimensions, mm Weight (for reference), kg
DN d1 d2 d3 d4 b t1 t2 r
80 122,0 ±1,0 111,0 ±1,0 80,5 ±1,0 116,5 ±1,0 28 5,5 13,3 4,5 0,13




100 146,5 ±1,0 134,5 ±1,0 99,5 ±1,0 140,5 ±1,0 30 5,5 14,3 5,0 0,17




125 172,5 ±1,0 160,5 ±1,0 123,0 ±1,0 167,0 ±1,0 31 5,5 15,3 5,0 0,28




150 203,5 ±1,5 189,5 ±1,5 151,0 ±1,5 196,0 ±1,5 32 5,5 15,3 5,5 0,41




200 260,0 ±1,5 244,0 ±1,5 202,0 ±1,5 250,0 ±1,5 33 5,5 15,3 6,0 0,50




250 315,0 ±1,5 299,0 ±1,5 257,0 ±1,5 305,0 ±1,5 33 5,5 15,3 6,0 0,63




300 369,0 ±1,5 353,0 ±1,5 311,0 ±1,5 359,0 ±1,5 33 5,5 15,3 6,0 0,95




350 424,0 ±2,0 406,0 ±2,0 361,0 ±2,0 413,0 ±2,0 36 5,5 16,0 7,0 1,14




400 477,0 ±2,0 459,0 ±2,0 414,0 ±2,0 465,0 ±2,0 36 5,5 16,0 7,0 1,35




500 587,0 ±3,0 568,0 ±3,0 529,0 ±3,0 576,0 ±3,0 38 5,5 17,1 7,5 2,43




Anchors For "RJ" Joint

Basic dimensions, weight

DN,

мм

b1,

мм

b2,

мм

b3,

мм

h,

мм

R,

мм

α° β°

c,

мм

Weight (for reference), kg

Left with retaining wire. kg

Right, kg

80 48 38 24 17 49 78 12 92 90 0,23 0,20
100 50 38 24 17 59 78 11 93 107 0,26 0,22
125 52 40 25 18 72 78 10 94 128 0,37 0,32
150 55 43 26 18 85 78 9 95 152 0,43 0,38
200 60 48 26 19 111 78 8 96 197 0,60 0,54
250 65 53 28 21 137 80 7 97 243 0,85 0,77
300 70 58 30 22 163 50 6 56 167 0,77 0,70
350 75 63 34 23 189 50 5,5 54,5 188 0,99 0,92
400 80 67 38 24 214 50 5 53 207 1,18 1,10
500 85 72 38 24 266 48 4,5 51,5 248 1,46 1,38
